Catnic CH110/100 110mm Cavity Wall Lintel

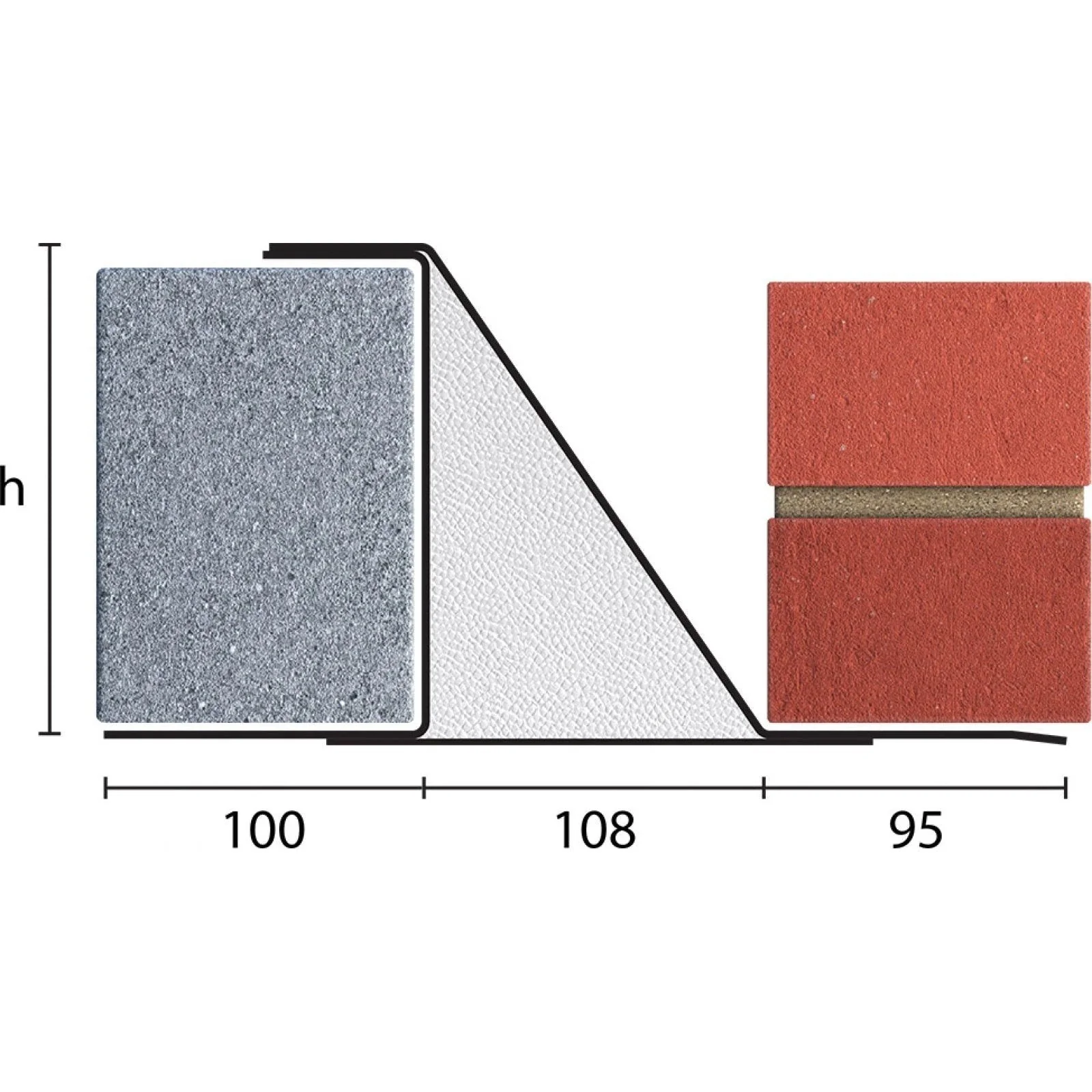

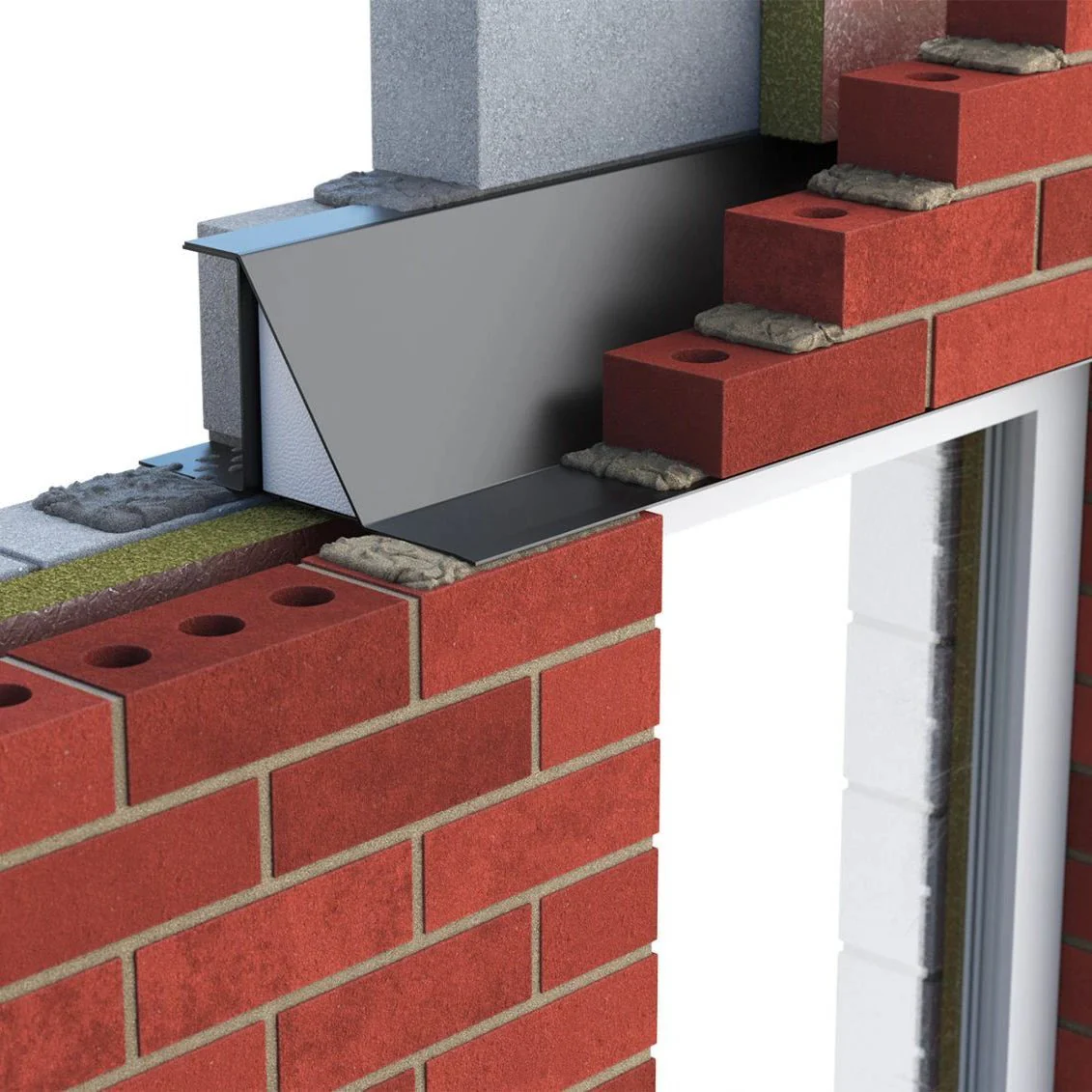

Catnic CH110/100 110mm Cavity Wall Lintel is a galvanised heavy duty steel lintel built for cavity wall construction with a cavity range of 110mm to 125mm. It supports inner masonry leaves of 100–115mm and outer leaves of 100–102mm.
Engineered for high load applications, it suits structural and multi-storey use. Available in spans from 900mm to 2400mm. Each unit weighs approximately 10,910g to 34,920g depending on size.
Key Features
- Heavy duty galvanised steel construction
- Supports 110–125mm cavity widths
- Load rated up to 48kN for reinforced strength
- Designed for block and concrete flooring loads
- Manufacturer: Catnic
- Weight: 10,910g to 34.92kg based on lintel length
- Available in 150mm increments up to 2400mm

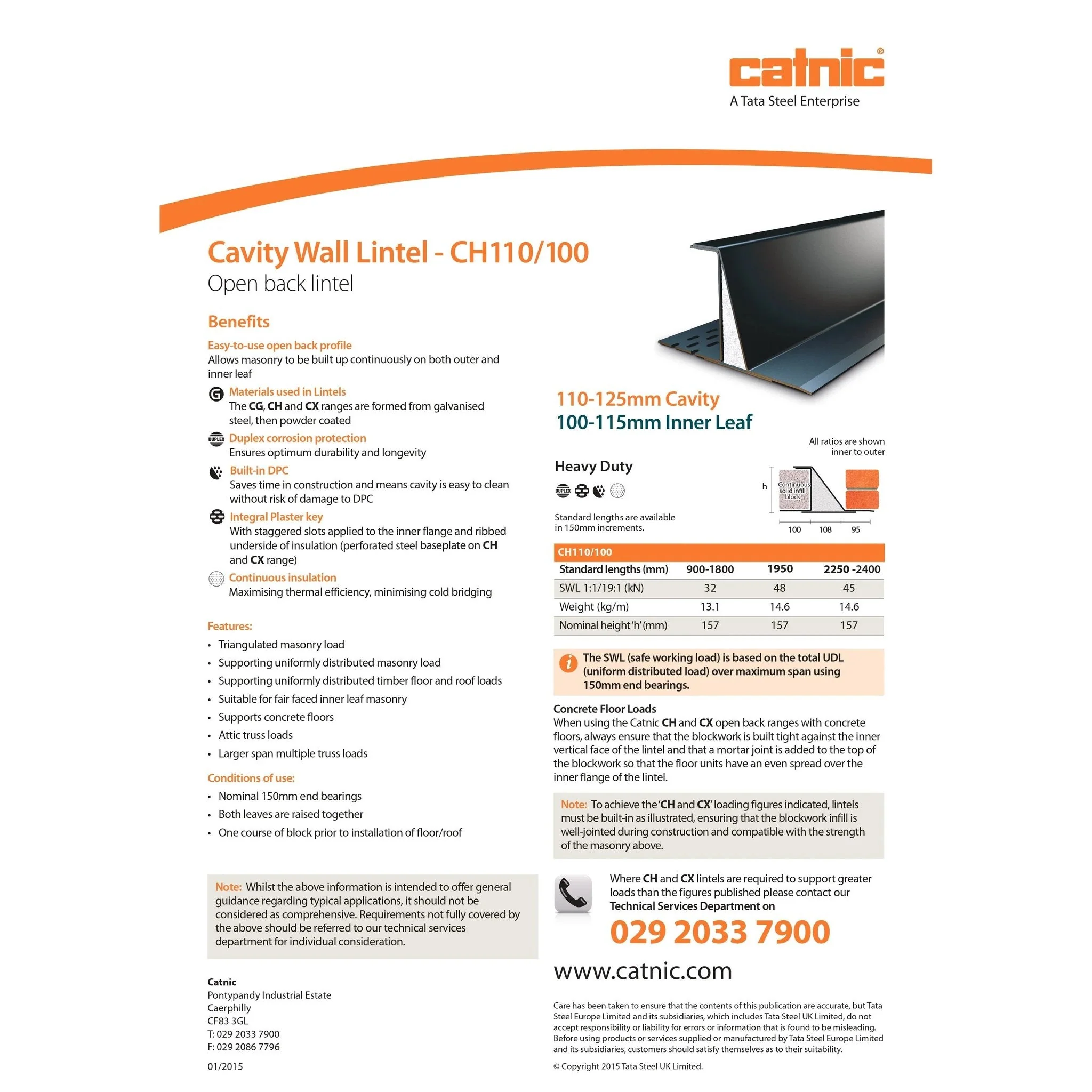

- Datasheet
Original: $135.40
-70%$135.40
$40.62More Images
Catnic CH110/100 110mm Cavity Wall Lintel
Catnic CH110/100 110mm Cavity Wall Lintel is a galvanised heavy duty steel lintel built for cavity wall construction with a cavity range of 110mm to 125mm. It supports inner masonry leaves of 100–115mm and outer leaves of 100–102mm.
Engineered for high load applications, it suits structural and multi-storey use. Available in spans from 900mm to 2400mm. Each unit weighs approximately 10,910g to 34,920g depending on size.
Key Features
- Heavy duty galvanised steel construction
- Supports 110–125mm cavity widths
- Load rated up to 48kN for reinforced strength
- Designed for block and concrete flooring loads
- Manufacturer: Catnic
- Weight: 10,910g to 34.92kg based on lintel length
- Available in 150mm increments up to 2400mm
- Datasheet
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Catnic CH110/100 110mm Cavity Wall Lintel is a galvanised heavy duty steel lintel built for cavity wall construction with a cavity range of 110mm to 125mm. It supports inner masonry leaves of 100–115mm and outer leaves of 100–102mm.
Engineered for high load applications, it suits structural and multi-storey use. Available in spans from 900mm to 2400mm. Each unit weighs approximately 10,910g to 34,920g depending on size.
Key Features
- Heavy duty galvanised steel construction
- Supports 110–125mm cavity widths
- Load rated up to 48kN for reinforced strength
- Designed for block and concrete flooring loads
- Manufacturer: Catnic
- Weight: 10,910g to 34.92kg based on lintel length
- Available in 150mm increments up to 2400mm
- Datasheet
